Mybatis多表关联查询的实现(DEMO)

龚星洲
2023-03-14
本文向大家介绍Mybatis多表关联查询的实现(DEMO),包括了Mybatis多表关联查询的实现(DEMO)的使用技巧和注意事项,需要的朋友参考一下

概要

本节要实现的是多表关联查询的简单demo。场景是根据id查询某商品分类信息,并展示该分类下的商品列表。

一、Mysql测试数据

新建表Category(商品分类)和Product(商品),并插入几条测试数据。

create table Category (
Id int not null auto_increment,
Name varchar(80) null,
constraint pk_category primary key (Id)
);
INSERT INTO category(Name) VALUES ('女装');
INSERT INTO category(Name) VALUES ('美妆');
INSERT INTO category(Name) VALUES ('书籍');
create table product (
Id int not null auto_increment,
categoryId int not null,
Name varchar(80) null,
constraint pk_product primary key (Id),
constraint fk_product_2 foreign key (categoryId)
references category (Id)
);
create index productCat on product (categoryId);
create index productName on product (Name);
INSERT INTO product(CategoryId,Name) VALUES (1, '裂帛');
INSERT INTO product(CategoryId,Name) VALUES (1, '雅鹿');
INSERT INTO product(CategoryId,Name) VALUES (2,'膜法世家');
INSERT INTO product(CategoryId,Name) VALUES (2,'御泥坊');
INSERT INTO product(CategoryId,Name) VALUES (2, '雅诗兰黛');
INSERT INTO product(CategoryId,Name) VALUES (2, '欧莱雅');
INSERT INTO product(CategoryId,Name) VALUES (2, '韩后');
INSERT INTO product(CategoryId,Name) VALUES (2, '相宜本草');
INSERT INTO product(CategoryId,Name) VALUES (3,'疯狂JAVA');
INSERT INTO product(CategoryId,Name) VALUES (3,'JAVA核心技术');

二、配置mybatis-generator-config.xml

配置mybatis-generator-config.xml的方法见 JAVA入门[7]-Mybatis generator(MBG)自动生成mybatis代码 ,这里主要改动的是table节点。

<table tableName="category" enableCountByExample="true" enableDeleteByExample="true" enableSelectByExample="true" enableUpdateByExample="true">
 <generatedKey column="Id" sqlStatement="mysql" identity="true"/>
</table>
<table tableName="product" enableCountByExample="true" enableSelectByExample="true" enableSelectByPrimaryKey="true" enableUpdateByPrimaryKey="true" enableDeleteByPrimaryKey="true" enableInsert="true">
 <generatedKey column="Id" sqlStatement="mysql" identity="true"></generatedKey>
</table>

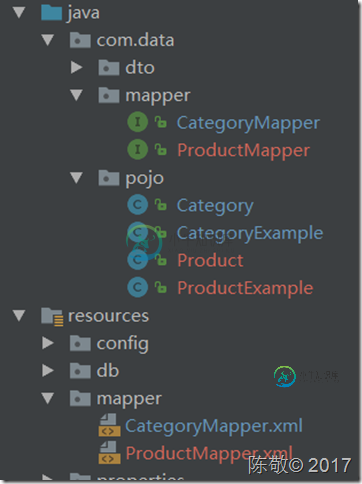

配置好xml文件后,在Maven面板运行mybatis-generator:generate,自动生成相关的类。

三、自定义mybatis关联查询

1.封装实体dto

我们新定义CategoryDto,封装商品分类信息及其商品列表。

public class CategoryDto {
 private Category category;
 private List<Product> products;
 private int id;
 public int getId() {
 return id;
 }
 public void setId(int id) {
 this.id = id;
 }
 public Category getCategory() {
 return category;
 }
 public void setCategory(Category category) {
 this.category = category;
 }
 public List<Product> getProducts() {
 return products;
 }
 public void setProducts(List<Product> products) {
 this.products = products;
 }
}

2.为CategoryMapper.java接口新增方法getById()

CategoryDto getById(int id);

3.配置CategoryMapper.xml

首先定义select节点,id对应上面的方法名getById;parameterType参数类型为Integer;resultMap为自定义resultMap的id。

 <select id="getById" parameterType="java.lang.Integer" resultMap="CategoryResult">
 SELECT Category.Id AS CateId,Category.Name AS CateName,Product.Id AS ProductId,Product.Name AS ProductName
 FROM Category,Product
 WHERE Category.Id=Product.CategoryId AND Category.Id=#{id}
 </select>

接下来定义resultMap节点id为CategoryResult,type为CategoryDto。

关于resultMap:

  • id – 一个 ID 结果;标记结果作为 ID 可以帮助提高整体效能
  • result – 注入到字段或 JavaBean 属性的普通结果
  • association – 一个复杂的类型关联;许多结果将包成这种类型
  • 嵌入结果映射 – 结果映射自身的关联,或者参考一个
  • collection – 复杂类型的集
  • 嵌入结果映射 – 结果映射自身的集,或者参考一个

完整参考官网:http://www.mybatis.org/mybatis-3/zh/sqlmap-xml.html#Result_Maps

用association对应category,collection对应products,然后用result对应到每个具体字段。

<resultMap id="CategoryResult" type="com.data.dto.CategoryDto">
 <association property="category" javaType="com.data.pojo.Category">
 <result property="id" column="CateId"></result>
 <result property="name" column="CateName"></result>
 </association>
 <collection property="products" ofType="com.data.pojo.Product">
 <result property="id" column="ProductId"></result>
 <result property="name" column="ProductName"></result>
 </collection>
 </resultMap>

四、测试

在上一节测试基础上新增测试方法:

@Test
 public void test_getById(){
 int id=2;
 CategoryDto dto= categoryMapper.getById(id);
 if(dto==null){
 System.out.println("不存在");
 }else {
 System.out.println("商品id="+dto.getId()+" name="+dto.getCategory().getName());
 System.out.println("Products:"+dto.getProducts().size());
 for(Product product:dto.getProducts()){
 System.out.println(" |_"+product.getName());
 }
 }
 }

运行之后居然报错了

org.mybatis.spring.MyBatisSystemException: nested exception is org.apache.ibatis.exceptions.TooManyResultsException: Expected one result (or null) to be returned by selectOne(), but found: 6

后来找到了解决方案,修改resultMap,添加id节点就可以了。

<resultMap id="CategoryResult" type="com.data.dto.CategoryDto">
 <id property="id" column="CateId"></id>
……
</resultMap>

运行结果:

商品id=2 name=美妆

Products:6

    |_膜法世家

    |_御泥坊

    |_雅诗兰黛

    |_欧莱雅

    |_韩后

    |_相宜本草
